With the increasing variety of output current requirements of LED power supplies on the market, LED power supply models are becoming more and more, for manufacturers and distributors, on the one hand, it is not convenient for bulk stocking; on the other hand, it will also affect the delivery date ,price. Therefore, higher requirements are placed on the flexibility of power supply applications. In order to solve this problem, Huaquan Electrical Lighting recently launched the NFC programmable power supply.

Practicality of NFC programmable power supplies
      With the development of the Internet of Things big data for NFC technology, industrial lighting also urgently needs the addition of this technology to provide intelligent services for the lighting industry. The NFC programmable power supply adopts the latest NFC wireless programming technology. During the programming process, the power supply does not need to be powered and wired. The entire programming process is short and fast, saving user time, reducing labor costs and improving the economic benefits of the user.

 Huaquan Electrical Lighting NFC programmable power supply to meet the output current requirements of different customers

 Foshan Huaquan Electrical Lighting NFC programmable power supply, suitable for LED street lights, tunnel lights and other engineering lighting lamps and lanterns, is a power source that can rewrite the output current and set the multi-time variable power through the mobile phone NFC software, to provide users with accurate selection of output current value. At the same time, it can also read the real-time parameter information of the power supply, so that the user can understand the actual parameters of the power supply.

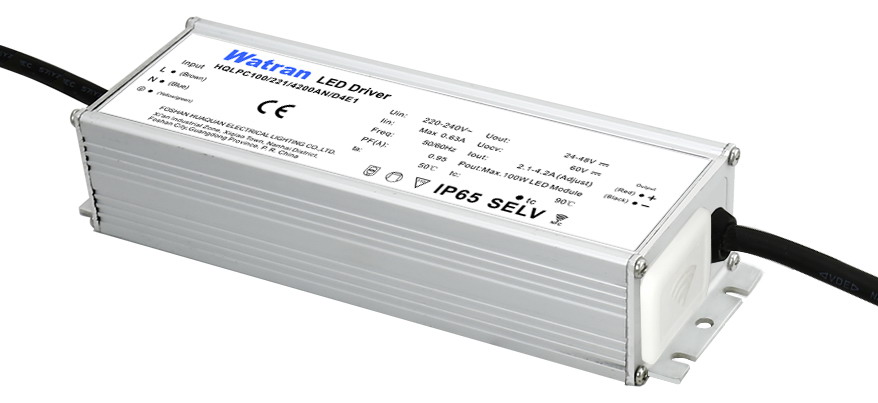

Figure: Huaquan Electrical Lighting NFC Programmable Power Supply

Product characteristics:

1. Isolation circuit design, active power factor correction, conversion efficiency up to 92%.

2. Constant current output, through the mobile phone NFC software can rewrite the output current value of the power supply, set multi-period variable power and read the current parameters of the power supply.

                                                 Note: Effective communication transmission distance is less than 35mm

3. Through the connection between the computer and the NFC reader, the output current value of the power supply can be rewritten, the multi-period variable power can be set, and the current parameters of the power supply can be read.

 4. Constant power output, input current can be adjusted twice, covering a variety of models.

In addition to rewriting the output current, in terms of security protection, the NFC programmable power supply intelligently limits power and has dual output protection. Avoid burning down the power supply due to improper operation of users. In addition, the unique surge protection patented technology not only protects the power supply, but also protects the LED light source. At the same time, NFC programmable power supply provides lightning protection: (L-N) 6KV, (L-G/N-G) 6KV and IP67 protection level, both indoor and outdoor can be installed and used.

At present, the NFC programmable power supply includes three specifications: 100W, 150W and 200W. The specific parameters are as follows:

Product quality is the lifeblood of an enterprise. Huaquan Electric Lighting adheres to the principle of quality first, strengthens the quality system and environmental protection, and establishes a first-class management system to ensure product consistency, stability and reliability.
